Performance Motorcycle Controls, Rearsets & Ergonomics
Performance motorcycle controls and ergonomics parts are precision CNC-machined mechanical and electronic components that optimize rider contact points, increase chassis lean angle clearance, and enable seamless full-throttle gear shifts. Upgrading motorcycle performance parts in the controls category eliminates footpeg dragging at high lean angles, sharpens steering leverage through rigid clip-on bars, and reduces rider forearm fatigue during intense track or technical street riding. Roxstar supplies and distributes imported performance control hardware across South Africa with dispatch by the fastest available method; installation is carried out by recommended service associates.
What motorcycle controls and ergonomics performance parts change
High-performance control components alter footpeg ground clearance, handlebar steering leverage angles, hand lever mechanical advantage, and transmission shift interrupt duration. Factory motorcycles compromise handlebar and footpeg locations to accommodate generic rider heights and casual street commuting. Performance controls allow millimeter-precise tailored fitment, providing the rigid mechanical leverage needed to muscle high-power machines through quick directional transitions while maintaining secure body anchor points.
| Part Category | Primary Attribute | Value Range / Technical Spec | Dynamic Effect on the Motorcycle |
|---|---|---|---|
| CNC Adjustable Rearsets | Multi-position indexing & upward/rearward offset | 9 – 12 indexed positions; 10mm – 35mm up/back; 6061-T6 / 7075-T6 billet | Increases cornering lean angle clearance; anchors rider boots; aligns knee angle against the fuel tank. |
| Billet Clip-On Handlebars | Fork clamp diameter & bar down-angle adjustability | 41mm – 55mm clamps; 0° – 10° downward sweep; hollow 22.2mm (7/8") bars | Lowers rider torso to reduce aerodynamic drag; sharpens front-tyre steering feedback; isolates fork flex. |
| Folding Adjustable Levers | Micro-click span adjustment & breakaway hinge | 6-position roller cam span; 90° upward pivot; CNC 6082-T6 alloy | Customizes lever reach for fingertip leverage; prevents lever snapping during low-speed tip-overs or crashes. |
| Strain-Gauge Quickshifters | Load-cell sensitivity & millisecond kill time | Dual-direction push/pull; 50ms – 65ms ECU ignition/fuel cut | Enables clutchless full-throttle upshifts and auto-blip downshifts; eliminates chassis pitch during gear changes. |
Types of motorcycle controls and ergonomics performance parts
High-performance motorcycle cockpit control systems comprise four core hardware classes. Upgrading these contact components transforms mechanical leverage, rider fatigue resistance, and corner-entry stability.
CNC Billet Rearsets and Foot Control Assemblies
CNC rearsets are machined from solid billets of aircraft-grade 6061-T6 or 7075-T6 aluminium to deliver absolute structural rigidity. Featuring multi-hole indexing adjustment backplates, riders can relocate footpegs upward and rearward between 10mm and 35mm compared to stock locations. High-traction deep-diamond knurling locks boots firmly during aggressive weight transfers. Premium assemblies incorporate sealed double ball bearings on brake and gear shift pivot levers to eradicate mechanical slop, alongside adjustable shift rod linkages that accommodate standard street or reverse GP shift patterns.
Billet Aluminium Clip-On Handlebars
Precision clip-ons clamp directly around upper fork stanchions using split-collar billet brackets machined in diameters from 41mm up to 55mm. Unlike flexible rubber-mounted factory one-piece handlebars, billet clip-ons bolt rigidly to the chassis front end, providing razor-sharp tactile steering feedback from the front tyre contact patch. Many systems allow riders to alter downward handlebar drop angles (typically from 0° flat to 10° down-sweep) and forward offset. Replaceable hollow 22.2mm aluminium handlebar tubes feature engraved millimeter calibration marks for symmetrical track setup and low replacement costs after minor spills.
Folding Adjustable Brake and Clutch Levers
CNC-machined from 6082-T6 alloy, performance hand levers feature micro-indexed span adjustment dials or roller cams that allow riders to fine-tune lever distance across six or more positions to suit hand size and glove thickness. An integrated 90° spring-loaded upward hinge mechanism allows the lever blade to pivot safely during a tip-over or gravel trap slide, preventing snap-offs and allowing the rider to finish their session. Aerodynamic wind-relief slots machined into the lever tips prevent extreme high-speed wind buffeting at 250+ km/h from inadvertently pressing against front master cylinder plungers.
Bidirectional Quickshifters and Auto-Blippers
Electronic quickshifter kits integrate an in-line strain-gauge load-cell sensor directly into the rearset shift linkage rod. Capable of detecting minute push and pull forces, the sensor triggers millisecond ignition cuts or fuel interrupts (typically 50ms to 65ms) through the engine control unit or standalone module. On modern ride-by-wire platforms, bidirectional auto-blipper systems electronically blip the electronic throttle bodies during downshifts, flawlessly rev-matching transmission gears without requiring clutch lever operation and eliminating corner-entry chassis pitch instability.
Featured Controls & Cockpit Hardware
Championship billet rearsets, plug-and-play digital instrument clusters, billet handlebar risers, and radial lowering hardware supplied directly through Roxstar's authorized brand channels: Attack Performance via Superbike Unlimited, Koso & Rick's Motorcycles via Henne USA, and Brock's Performance. Fast air freight import to South Africa with door-to-door delivery.

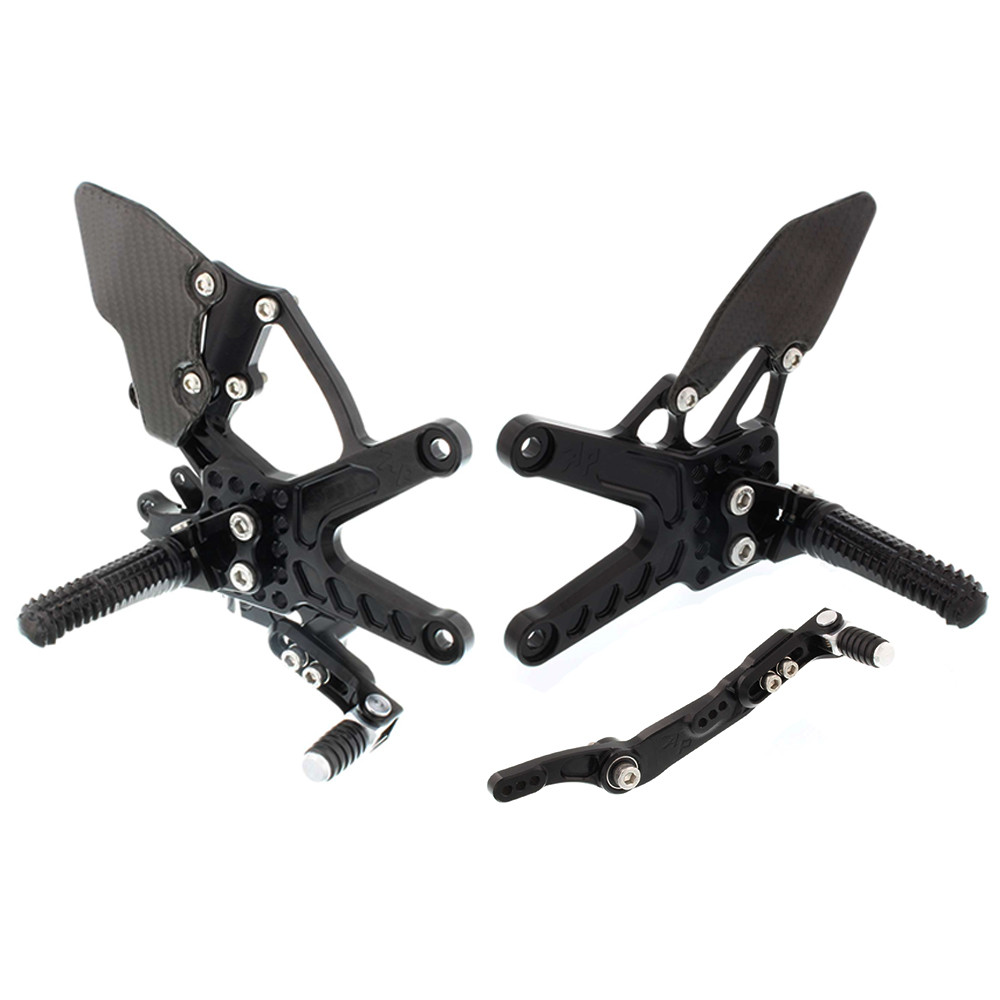

Billet Adjustable Racing Rearsets
The premier American road race rearsets supplied via Superbike Unlimited. Features double ball bearing linkages for frictionless shifting and deep knurled pegs for maximum boot traction.
- MotoAmerica championship-winning design & engineering
- CNC-machined 7075-T6 billet aluminum construction
- Independent 12-position peg, brake, and shift pedal adjustment
- Reversible shift pattern for GP reverse-shift configurations

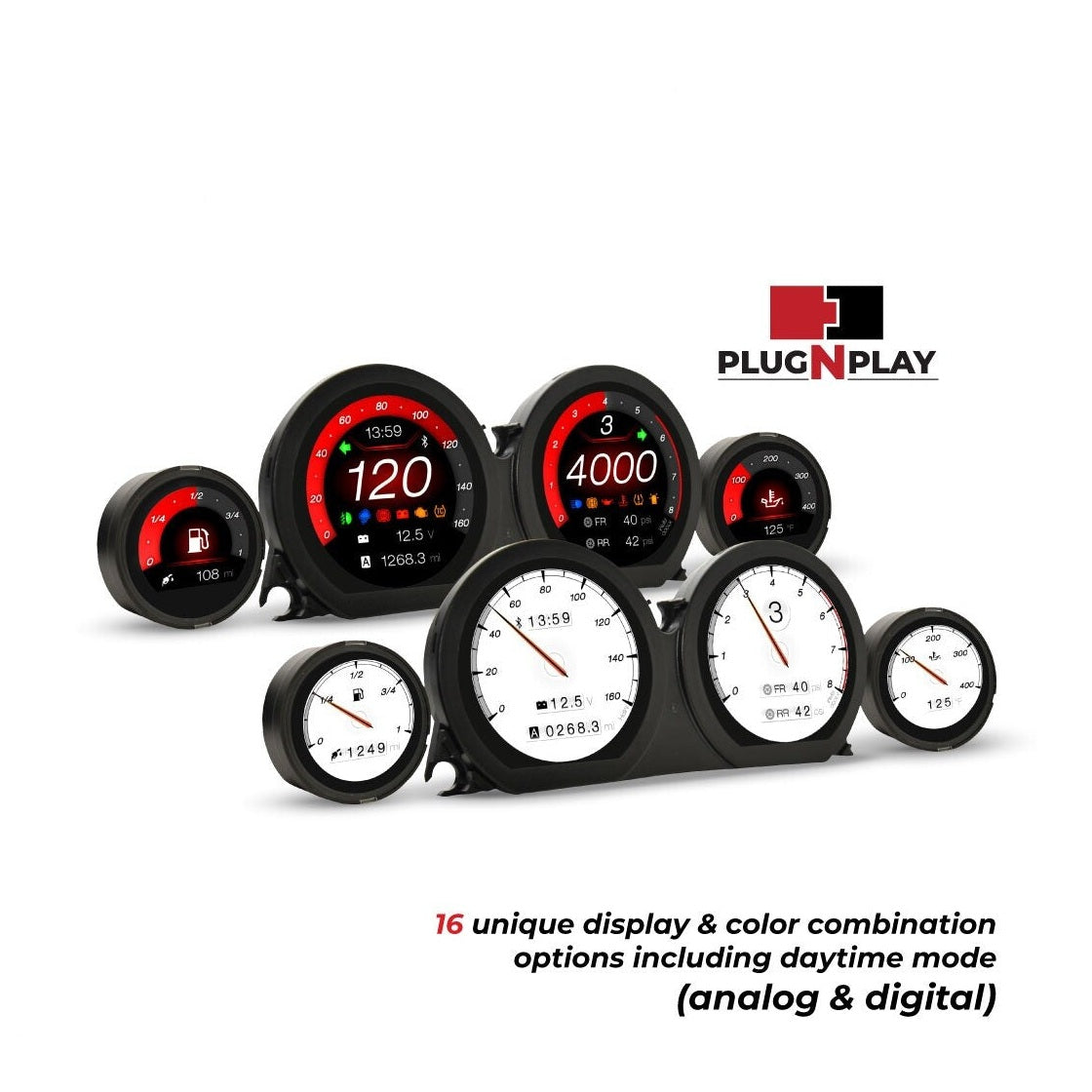

HD-03X 4-Piece TFT Color Digital Gauge Kit
Transforms the cockpit of Harley Touring baggers with modern high-definition full-color TFT telemetry, customisable color themes, and active shift indicators.
- Ultra-crisp full-color TFT digital display screens
- Plug-and-play CAN-bus harness integration
- Displays speedometer, tachometer, oil temp, fuel level & gear
- Engineered for 2014-2023 Harley-Davidson Touring FLHT, FLHX, FLTR

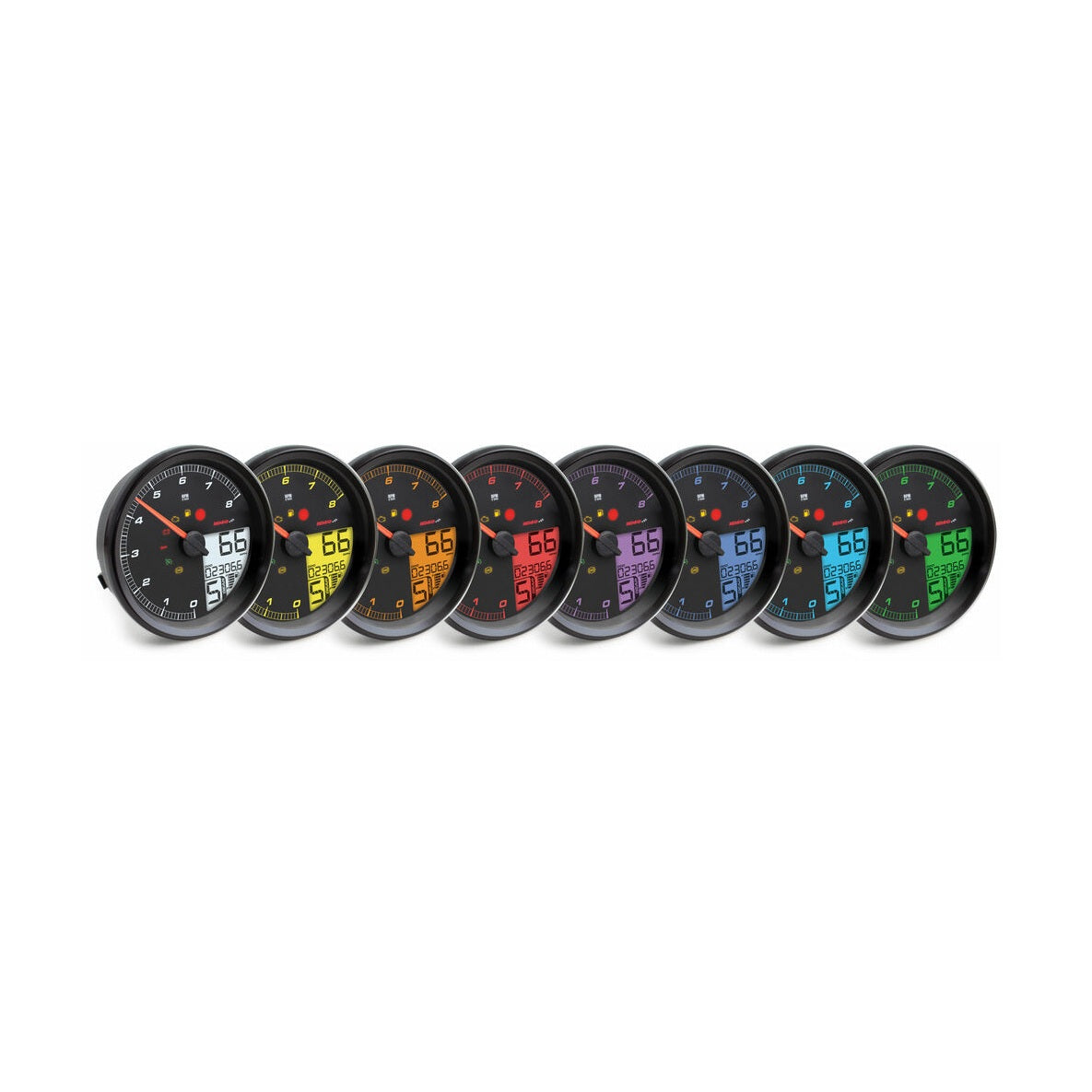

HD-05 4.5\
Sleek, high-contrast digital gauge console supplied through Henne USA. Replaces dated analogue gauges with precise digital speed, RPM, and vital engine health readouts.
- 4.5" round digital speedometer & tachometer console
- Switchable 8-color backlighting display
- Integrated gear indicator, engine temperature, and clock
- Direct fitment for CAN-Bus Harley Softail, Dyna & Road King

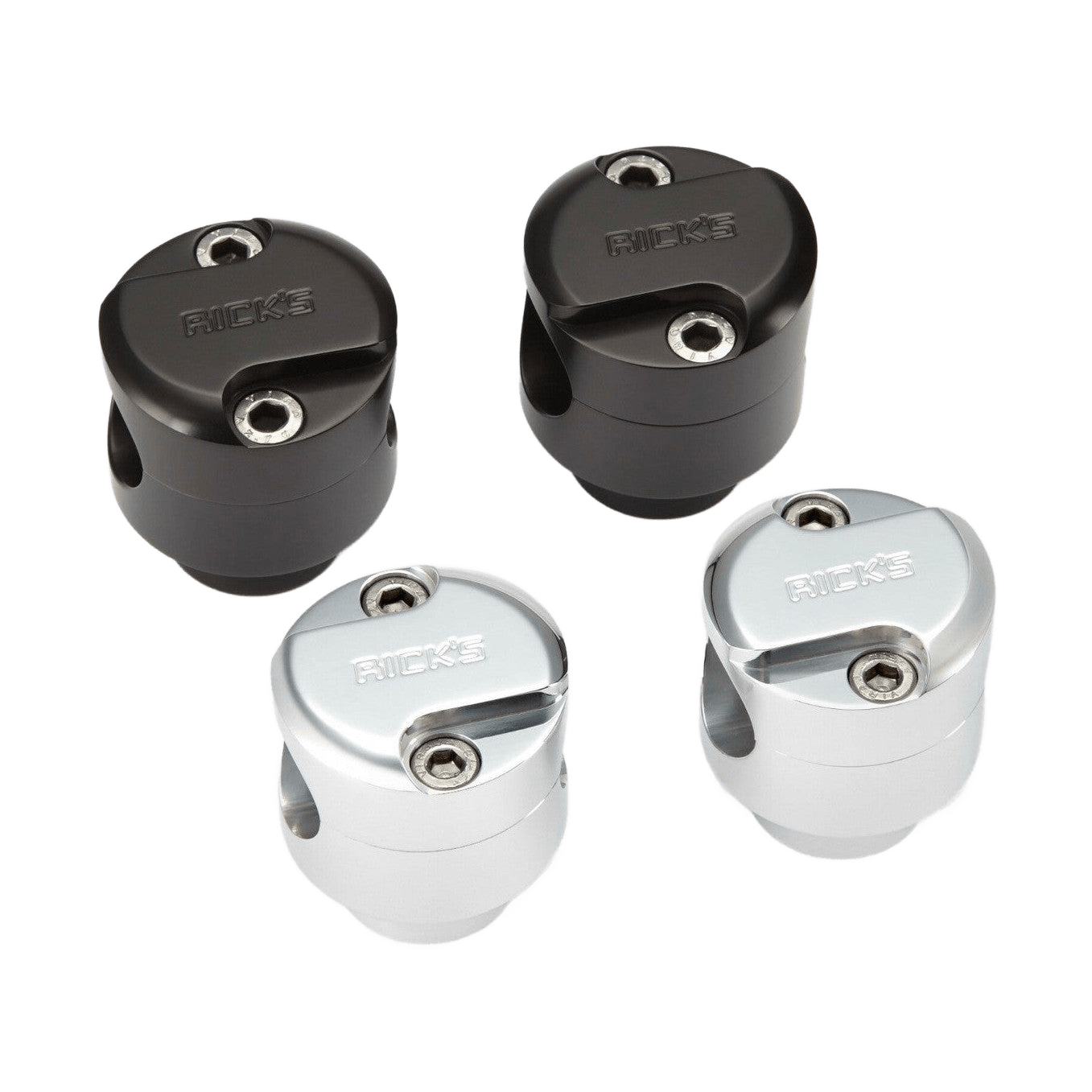

Classic Billet Handlebar Bar Risers
German precision-crafted bar risers supplied via Henne USA. Delivers the aggressive upright posture required for high-speed clubstyle cornering and bagger control.
- CNC-machined from solid aircraft-grade billet aluminum
- Internal routing channels for electrical throttle-by-wire wiring
- High-gloss mirror polished chrome or deep black anodized
- Compatible with 1" and 1.25" performance handlebars

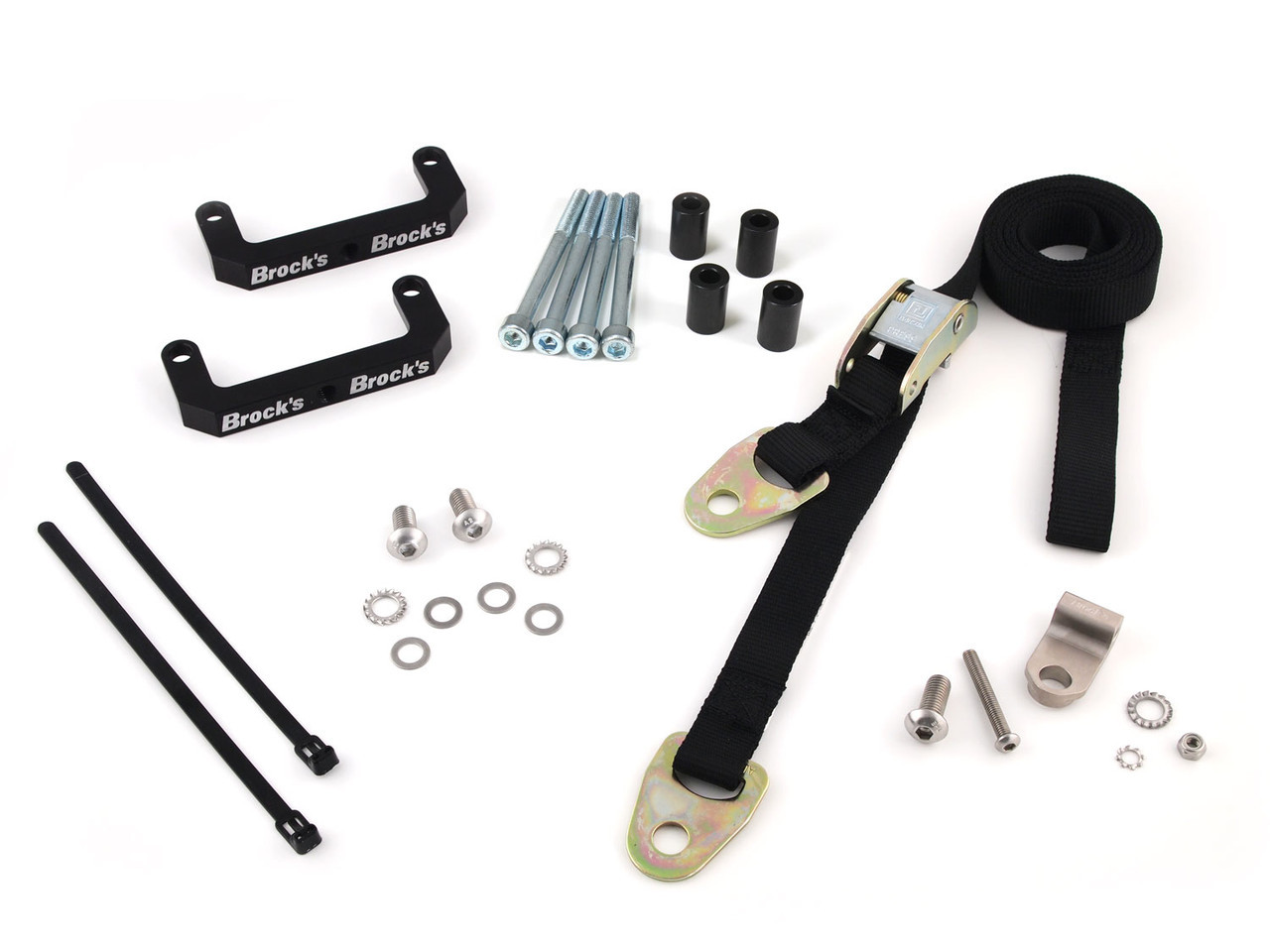

Radial Mount Front End Lowering & Strap Kit
Supplied by Brock's Performance to compress front fork travel during launches, eliminating wheelies and maximizing rear-tire forward drive off the line.
- CNC billet 100mm / 108mm radial caliper adapter brackets
- Integrated heavy-duty front strap anchor pins
- Allows progressive front-end compression at drag launch
- Engineered for Suzuki Hayabusa, GSX-R1000, BMW S1000RR & ZX-14R
Choosing control and ergonomics parts by bike type
Ergonomic geometries must be engineered around the dynamic posture, chassis weight, and handling characteristics of each motorcycle platform. Superbikes require radical ground clearance, V-twins require dominant torso leverage, and adventure tourers demand comfortable standing stability.
Superbike Rearsets & Clip-Ons
Circuit superbikes demand maximum cornering ground clearance to prevent footpegs from dragging at 50+ degree lean angles. High-mounted CNC rearsets, reverse GP shift patterns, steep 7° to 10° down-angle clip-ons, and bidirectional auto-blipper load cells stabilize body positioning through high-speed chicane transitions. Explore circuit controls on our superbike performance parts hub.
V-Twin Mid-Controls & Risers
High-performance V-twins and Dyna/Softail platforms benefit tremendously from ditching forward foot controls in favour of CNC billet mid-controls. Mid-controls position the rider's feet underneath the hips for aggressive torso bracing. Paired with modular billet handlebar risers and high-leverage moto bars, riders gain superior leverage to flick heavy cruisers into tight turns. Discover V-twin ergonomics on our V-twin performance parts hub.
Adventure Rally Pegs & Bar Risers
Off-road adventure riding demands ergonomics configured for hours of active standing. Extra-wide CNC billet or cast stainless rally footpegs with replaceable cleat pins prevent boots slipping off wet pegs, while ergonomic handlebar risers relieve neck and lower-back strain. Unbreakable multi-axis folding levers prevent stranded riders after remote drops. Review dual-sport setups on our adventure performance parts hub.
Which brands Roxstar supplies for controls and ergonomics
Roxstar supplies engineered cockpit control hardware manufactured to rigorous international motorsport tolerances. Every rearset bracket, clip-on collar, folding lever, and strain-gauge sensor is checked for dimensional accuracy, metallurgy, and exact model-year chassis fitment.
Direct Import & Distributor Supply
Roxstar Performance is currently finalizing direct distributor supply partnerships with premier European and American performance control manufacturers (TODO_CONFIRM: confirm authorized brand portfolio for controls and rearsets). In the interim, CNC adjustable rearsets, racing clip-on bars, folding levers, and strain-gauge quickshifters are procured via our verified international supply pipeline with guaranteed authenticity and model-year precision.
How control and ergonomics upgrades pair with other modifications
Motorcycle controls form the immediate physical conduit between the rider's inputs and the motorcycle's mechanical responses. Harmonizing ergonomic components with chassis braking, suspension, and drivetrain upgrades produces immediate performance gains.
Radial Braking Modulation
Pairing CNC adjustable folding levers with radial master cylinders on our performance brakes hub allows riders to micro-adjust lever reach. This optimizes fingertip mechanical leverage, eliminating arm pump during aggressive trail-braking deep into corner apexes.
Suspension Pitch & Leverage
Clip-ons and elevated rearsets position the rider's upper torso lower and forward over the triple clamp. Synchronizing rider mass transfer with front cartridge spring preload on our suspension performance hub maximizes front-tyre mechanical grip and chassis stability under hard deceleration.
Quickshifter & Slipper Harmony
Rearset shift linkage strain gauges communicate directly with transmission components on our clutch and drivetrain hub. Pairing quickshifters with race slipper clutches ensures buttery smooth, hop-free downshifts and instant full-throttle upshifts without upsetting chassis poise.
Supply, delivery and recommended fitment
Roxstar supplies and distributes performance parts and handles all customer service and customer handling itself. Goods are delivered by the fastest available method. Delivery takes overnight at most from the time goods arrive in South Africa. Installation is NOT performed by Roxstar: a recommended service associate carries it out, selected by bike, usage, and condition.
Direct Supply & Rapid Delivery
Roxstar manages complete procurement and distribution of imported CNC rearsets, clip-on handlebars, levers, and quickshifter systems. Delivery takes overnight at most from the time goods arrive in South Africa, dispatched via express courier directly to your door or designated workshop. Learn more about our performance parts supply and delivery service.
Recommended Fitment Partners
Installation is not performed by Roxstar. To ensure rearset pivot pin torques, shift rod ball-joint thread engagement, and quickshifter wiring harness pin-outs are installed to exact factory safety specifications, Roxstar refers clients to independent, vetted specialists. Review our network of recommended fitment partners.
Compatibility Verification
Cockpit upgrades require precise fork stanchion diameter measurements (41mm to 55mm), shift rod thread pitches (M6 standard vs reverse thread), and frame mounting bolt spacing. Our technical desk conducts rigorous pre-order checks against your motorcycle's exact model year. Submit your specifications to our parts compatibility check before ordering.
Frequently Asked Questions about Motorcycle Controls & Ergonomics
Clear, evidence-backed answers regarding motorcycle exhaust fitment and supply.
What is the difference between standard road shift and reverse GP shift patterns?
Why do aftermarket CNC rearsets provide more cornering grip and control than stock footpegs?
How does an electronic quickshifter allow clutchless full-throttle upshifts?
What fork tube measurements are required when ordering clip-on handlebars?
Does Roxstar Performance install rearsets, wire quickshifters, or adjust handlebar ergonomics?
