Performance Motorcycle Suspension & Handling Upgrades
Performance motorcycle suspension parts are engineered aftermarket hydraulic and mechanical damping components that control wheel displacement, stabilize chassis geometry during dynamic pitch, and maximize tyre contact patch adhesion over irregular road surfaces. Upgrading motorcycle performance parts in the suspension category eliminates excessive front fork dive, restores mid-corner line holding, and delivers predictable high-speed chassis compliance. Roxstar supplies and distributes imported performance suspension hardware across South Africa with dispatch by the fastest available method; installation is carried out by recommended service associates.
What motorcycle suspension performance parts change
High-performance suspension components alter hydraulic oil flow restriction, mechanical spring resistance rates, chassis ride height geometry, and high-speed versus low-speed damping velocity curves. Factory suspension systems incorporate broad compromise valving and soft progressive springs designed to accommodate a vast range of rider weights and smooth highway commutes. Performance suspension replaces generic damping with high-flow shim stacks, pressurized cartridge isolation, and precise spring rates tuned to rider mass and aggressive riding dynamics.
| Part Category | Primary Attribute | Value Range / Technical Spec | Dynamic Effect on the Motorcycle |
|---|---|---|---|
| Fork Cartridge Kits | Closed/pressurized damping & piston diameter | 25mm – 30mm CNC aluminium pistons; independent compression & rebound legs | Separates damping circuits; eliminates hydraulic cavitation and oil foaming; delivers click-by-click damping precision. |
| Silicon-Chrome Springs | Linear spring rate & material tensile strength | 8.5 N/mm – 11.5 N/mm; cold-coiled CrSi alloy steel | Eliminates fork bottoming under threshold braking; sets correct dynamic rider sag (30mm – 35mm street / 25mm track). |
| Performance Rear Monoshocks | Multi-way damping & piggyback reservoir volume | 40mm – 46mm piston; 3-way adjustment (high/low compression, rebound, hydraulic preload) | Prevents rear chassis squat under hard acceleration; maintains swingarm anti-squat angle; delivers fade-free thermal dissipation. |
| Steering Dampers | Velocity-sensitive rotary or linear hydraulic bypass | 16 – 24 click micro-metering range; pressurized nitrogen expansion chamber | Suppresses violent handlebar headshake and tank-slappers during rapid front-wheel light-load acceleration over crests. |
Types of motorcycle suspension performance parts
High-performance motorcycle suspension encompasses four primary mechanical and hydraulic hardware classes. Upgrading these assemblies transforms front-end feedback, damping stability, and tyre traction.
Complete Fork Cartridge Kits and Pressurized Internals
Complete fork cartridge kits replace restrictive factory damper rods or unpressurized stock cartridges with hard-anodized billet aluminium cylinders housing oversized 25mm to 30mm valving pistons. By dividing damping tasks—allocating high-resolution compression valving to the left fork leg and rebound valving to the right leg—cartridge kits eliminate hydraulic cross-talk and oil aeration. External top-cap adjusters permit rapid trackside fine-tuning of spring preload, compression stiffness, and rebound return rate without disassembling the fork legs.
Linear Silicon-Chrome Fork and Shock Springs
High-performance suspension springs are cold-coiled from premium silicon-chrome (CrSi) alloy wire, heat-treated, shot-peened, and pre-set to prevent metallurgical fatigue and ride-height settling. Unlike progressively wound OEM springs that offer vague initial stroke resistance, linear springs deliver an unwavering, proportional force throughout the compression travel. Selecting exact spring rates matched to total rider mass ensures proper static sag (unladen bike weight) and rider sag (laden operating height), keeping the suspension working inside its optimal mid-stroke damping range.
Performance Rear Shocks and Monoshocks
Performance rear monoshocks employ high-pressure gas-charged monotube construction with external piggyback or remote-reservoir nitrogen chambers. High oil volume prevents thermal damping fade when absorbing continuous high-frequency bumps over South African roads. Premium units feature independent high-speed and low-speed compression clickers, broad-spectrum rebound adjustability, ride-height length adjustment (±5mm) to tune chassis rake and trail geometry, and hydraulic remote preload dials for fast chassis leveling under luggage or passenger payloads.
Precision Hydraulic Steering Dampers
Steering dampers control uncontrolled handlebar oscillations caused when the front tyre skims over surface imperfections under hard acceleration. Available in linear rod-end stroke designs or compact triple-clamp-mounted rotary configurations, steering dampers employ velocity-sensitive valving shims. They allow light, unencumbered handlebar inputs at low steering speeds while instantly generating hydraulic resistance against aggressive steering head deflections, preventing dangerous high-speed tank-slappers.
Featured Suspension Hardware
World-championship monotube & twin-tube dampers, closed-cartridge fork kits, and precision adjustable lowering hardware supplied directly through Roxstar's authorized brand channels: Öhlins via Henne USA and Superbike Unlimited, K-Tech Suspension via Orient Express Racing, and Brock's Performance. Fast air freight import to South Africa with door-to-door delivery.
STX 36 Twin Shock Absorbers with Piggyback Reservoirs (HD 779)
The premier suspension upgrade for Harley-Davidson baggers supplied through Henne USA. Transforms chassis stability, eliminating high-speed rear bounce and harsh bottoming over South African roads.
- 36mm monotube gas-pressurized damper architecture
- External golden piggyback reservoir for fade-free damping
- Full compression, rebound, and spring preload adjustment
- Fits 2014-2026 Harley-Davidson Touring FLHR, FLHT, FLHX, FLTR

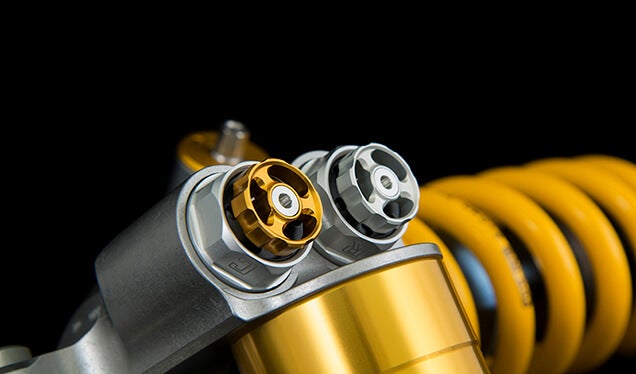

TTX GP Rear Competition Racing Shock
The world benchmark in motorcycle road racing suspension. Derived directly from MotoGP competition to deliver unmatched mechanical rear-tire grip and corner exit traction.
- Twin-tube TTX technology eliminates oil cavitation risk
- Completely separated high & low-speed damping circuits
- Integrated hydraulic spring preload adjuster
- Fitted on championship MotoGP & WorldSBK machinery
35DDS Pro Rear Racing Shock
British championship-winning rear suspension supplied through Orient Express Racing. Engineered for aggressive road race and track day performance with ultra-sensitive damping feedback.
- Direct Damping System 35mm high-flow piston
- Bypass valve high & low-speed compression adjusters
- Billet aluminium CNC chassis with manual length adjustment
- Supplied with hydraulic spring preload adjuster

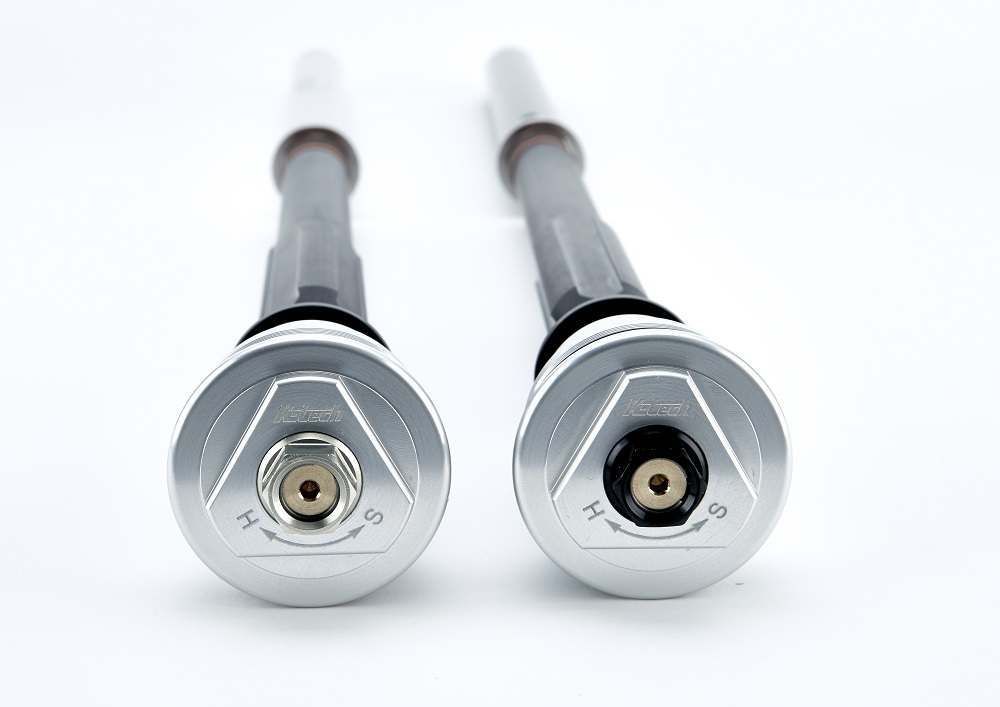

25IDS Front Fork Cartridge Kit
Transforms OEM telescopic and inverted forks into professional-grade closed-chamber damping units, providing immense front-end confidence and precise trail braking control.
- 25mm Independent Damping System (IDS)
- Dedicated compression in left leg, rebound in right leg
- Hard-chrome plated 8mm damper shafts
- Replaces restrictive OEM fork internals directly

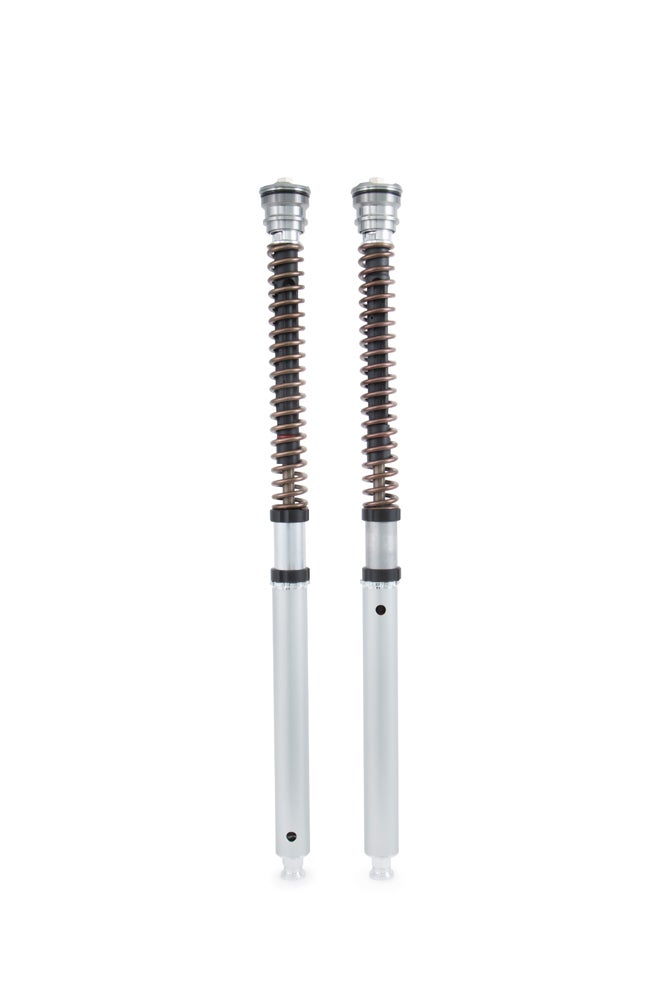

NIX 30 Front Fork Cartridge Kit
WorldSBK-derived fork cartridge kit supplied through Superbike Unlimited. Delivers exceptional stability under heavy threshold braking and immediate bump absorption.
- 30mm piston diameter with high-flow shims
- Left leg compression, right leg rebound damping control
- Top-cap accessible damping & spring preload adjusters
- Available for sportbikes, hypernakeds, and Harley performance forks

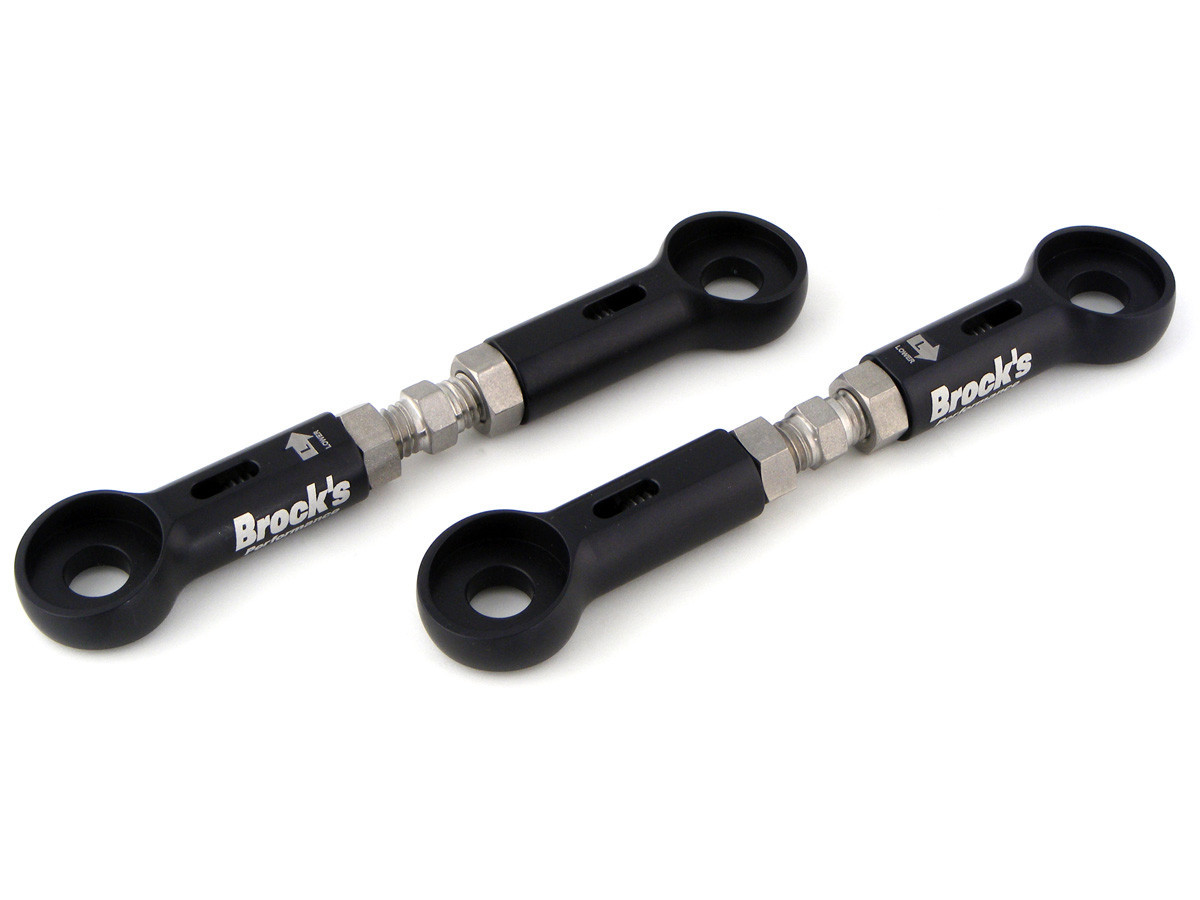

Window Links™ Fully Adjustable Lowering Kit
The safest, most precise adjustable lowering links available. Allows riders to lower center of gravity for drag racing or adjust stance without compromising thread safety.
- Proprietary thread-inspection window prevents over-extension
- CNC-machined 6061-T6 billet aluminium link ends
- Rolled high-tensile stainless steel adjustment rods
- Infinite ride-height adjustment without removing links from the bike
Choosing suspension performance parts by bike type
Suspension damping and spring requirements are governed by vehicle weight, lean angle demands, and operating terrain. Track superbikes demand firm chassis poise, cruisers require plush travel that preserves spine comfort, and adventure machines require supple compliance over rocky corrugations.
Superbike Chassis Setup
Circuit superbikes rely on stiff linear fork springs, 30mm closed-cartridge kits, and 46mm rear monoshocks to maintain mid-corner chassis geometry at 55° lean angles. Independent high-speed compression valving absorbs harsh kerb strikes without kicking the chassis off line. Review complete setups on our superbike performance parts hub.
V-Twin Stance & Compliance
Heavy cruisers suffer from short factory rear wheel travel (frequently under 75mm), causing spine-jarring bottoming over expansion joints. Upgrading to 13-inch or 14-inch piggyback gas shocks increases suspension stroke, restores cornering clearance, and stops high-speed highway chassis wallow. Explore V-twin suspension on our V-twin performance parts hub.
Adventure Long-Travel Valving
Adventure touring motorcycles traverse hundreds of kilometres of dirt corrugations while carrying heavy luggage. Progressive-rate spring kits, high-flow hydraulic piston valving, and remote hydraulic preload dials prevent bottoming out while isolating the chassis from trail chatter. Review dual-sport setups on our adventure performance parts hub.
Which brands Roxstar supplies for suspension performance parts
Roxstar supplies engineered suspension hardware manufactured to exacting international motorsport and safety tolerances. Every cartridge kit, spring set, monoshock, and steering damper is matched to verified motorcycle model years and rider weight specifications.
Direct Import & Distributor Supply
Roxstar Performance is currently finalizing direct distributor supply partnerships with premier European and American performance suspension manufacturers (TODO_CONFIRM: confirm authorized brand portfolio for suspension hardware). In the interim, bespoke fork cartridge kits, calibrated silicon-chrome springs, linear steering dampers, and multi-way adjustable rear shocks are procured via our verified international supply pipeline with guaranteed authenticity and model-year precision.
How suspension upgrades pair with other modifications
Suspension damping and spring rates form the dynamic foundation of motorcycle handling. Enhancing suspension directly influences braking threshold limits, cockpit leverage, and rear tyre drive traction. Reducing unsprung wheel mass via our weight reduction hub allows suspension dampers to track ripples with dramatically lower inertia.
Braking & Anti-Dive Balance
Upgraded sintered race pads and floating rotors on our performance brakes hub generate intense deceleration forces. Calibrated fork springs and compression valving keep the front fork in its travel sweet-spot, preventing tyre skid and premature ABS intervention.
Controls & Ride Height
Adjusting rear monoshock length or fork tube clamp height alters steering rake and trail geometry. Pairing suspension tuning with CNC adjustable rearsets and clip-on bars from our controls and ergonomics hub aligns rider body leverage with chassis pitch.
Drivetrain Anti-Squat
Under hard corner exit throttle, drive chain tension interacts with swingarm pivot angles. Matching rear shock low-speed compression damping with upgraded gearing on our clutch and drivetrain hub maintains ideal anti-squat geometry, driving the rear tyre firmly into the tarmac.
Supply, delivery and recommended fitment
Roxstar supplies and distributes performance parts and handles all customer service and customer handling itself. Goods are delivered by the fastest available method. Delivery takes overnight at most from the time goods arrive in South Africa. Installation is NOT performed by Roxstar: a recommended service associate carries it out, selected by bike, usage, and condition.
Direct Supply & Rapid Delivery
Roxstar manages complete procurement and distribution of imported performance suspension systems. Delivery takes overnight at most from the time goods arrive in South Africa, dispatched via express courier directly to your door or designated workshop. Learn more about our performance parts supply and delivery service.
Recommended Fitment Partners
Installation is not performed by Roxstar. To ensure fork cartridge kits, shock linkages, and steering dampers are installed to correct manufacturer torque values and calibrated for rider sag, Roxstar refers clients to independent, vetted suspension specialists. Review our network of recommended fitment partners.
Compatibility Verification
Suspension components demand precise stanchion inner diameters (37mm, 41mm, 43mm), shock eye-to-eye lengths, and matched spring rates (N/mm). Our technical desk conducts thorough pre-order compatibility reviews against your motorcycle model year and laden weight. Submit your details to our parts compatibility check before ordering.
Frequently Asked Questions about Performance Suspension
Clear, evidence-backed answers regarding motorcycle exhaust fitment and supply.
Why are linear fork springs preferred over progressively wound springs for performance riding?
What is the difference between open-cartridge and closed-cartridge fork kits?
How do high-speed and low-speed compression damping differ on a performance rear shock?
Why does upgrading suspension improve motorcycle braking performance?
Does Roxstar Performance install fork cartridges, rebuild shocks, or tune motorcycle sag?
Request Model-Specific Motorcycle Exhaust Advice
Speak directly with a specialist to verify make, model, year, and performance compatibility for your motorcycle.
