Motorcycle High-Flow Cooling & Performance Oiling Systems
Performance motorcycle cooling and lubrication components are engineered mechanical, hydraulic, and thermal heat-exchange systems designed to maintain optimal engine oil pressure, eliminate crankcase oil sumping, and reject excess combustion heat under extreme racing or high-ambient operating conditions. Upgrading motorcycle performance parts in the cooling and lubrication category prevents engine oil shearing at temperatures above 130°C, stops ECU thermal derating on circuit superbikes, and ensures uniform valvetrain oiling on big-bore engines. Roxstar supplies and distributes imported performance cooling and oiling hardware across South Africa with dispatch by the fastest available method; installation is carried out by recommended service associates.
What motorcycle cooling and lubrication performance parts change
High-performance cooling and lubrication upgrades alter oil scavenge and feed flow rates, total engine fluid capacity, thermal heat dissipation surface area, and coolant pressure thresholds. Factory cooling and oil systems are designed around strict manufacturing cost constraints and conservative commuter duty cycles. Pushing modified engines under hot South African track or mountain pass conditions overwhelms stock heat rejection limits, leading to thinned oil films, bearing wear, and power-sapping ignition retard.
| Part Category | Primary Attribute | Value Range / Technical Spec | Dynamic Effect on the Motorcycle |
|---|---|---|---|
| Billet High-Flow Oil Pumps | Scavenge & feed gear volume / hydraulic pressure | +40% feed volume; +60% scavenge capacity; 6061-T6 hard-anodised billet | Eliminates crankcase sumping; stabilizes oil pressure at 3,000+ RPM; supplies pressurized oil to piston cooling jets. |
| Oversized Racing Radiators | Core surface area & fin pitch density | +30% to +50% coolant volume; 22mm – 36mm core depth; dual-pass flow | Drops peak coolant operating temperatures by 10°C to 18°C; prevents ECU thermal timing retard during circuit sessions. |
| Billet Auxiliary Oil Coolers | Heat rejection rate (BTU/hr) & AN-line sizing | 10 to 16 row extruded alloy cores; -8AN / -10AN braided stainless lines | Lowers bulk sump oil temperature by up to 25°C; maintains lubricant film shear strength under sustained high-load running. |
| High-Flow Water Pumps & Caps | Hydraulic impeller flow & relief valve pressure | High-angle billet impeller; 1.6 bar – 2.0 bar cap pressure rating | Elevates coolant boiling threshold to >125°C; prevents cylinder head cavitation and micro-boiling under peak race throttle. |
Types of motorcycle cooling and lubrication performance parts
High-performance engine thermal regulation comprises four distinct mechanical and hydraulic component classes. Upgrading these systems preserves lubricant hydrodynamic film thickness and maintains engine output across punishing duty cycles.
Dual-Stage Billet Oil Pumps and Cam Plates
Machined from aerospace 6061-T6 or 7075 billet aluminium with hard-anodised port cavities, high-flow oil pumps feature separate high-volume gerotor gear sets for pressure delivery and crankcase scavenging. By increasing scavenge capacity by over 50% compared to cast OEM units, these pumps eliminate crankcase sumping where excess oil drags against the spinning crankshaft, robbing horsepower and elevating oil aeration. Integrated high-flow cam support plates feature rigid bushing journals and precision pressure-relief plunger valves that prevent oil pressure drop at hot idle.
Oversize All-Aluminium Racing Radiators
Constructed entirely with furnace-brazed aluminium cores and TIG-welded end-tanks, oversize racing radiators eliminate the cracking risks of plastic factory tanks. Featuring dual-pass internal flow baffles and dense fin pitch matrices, racing radiators expand total coolant capacity by 30% to 50% while increasing ram-air surface area. By maintaining uniform water temperatures across the cylinder block, they avert localized cylinder bore distortion, keeping piston-to-wall clearances stable and preventing the ECU from pulling ignition timing during 20-minute track sessions.
Thermostatically Controlled Auxiliary Oil Coolers
Engineered with 10 to 16 row stacked-plate extruded aluminium cores, performance oil cooler kits mount in high-velocity airflow zones behind the front wheel or on lower frame downtubes. Connected via high-flow -8AN or -10AN stainless steel braided hoses, these systems incorporate internal 85°C to 90°C thermostatic bypass valves. The thermostat allows the engine oil to reach operating temperature rapidly on cold mornings, only routing oil through the external heat exchanger once temperatures climb, shedding up to 25°C of bulk oil heat under severe load.
High-Pressure Radiator Caps and Billet Water Pump Impellers
High-pressure radiator caps replace stock 1.1 bar caps with calibrated 1.6 bar, 1.8 bar, or 2.0 bar pressure valves. Raising the cooling system pressure increases the boiling threshold of ethylene-glycol mixtures to over 125°C, preventing micro-boiling pockets from insulating cylinder head combustion domes. Paired with CNC billet water pump impellers designed with aggressive high-pitch curved vanes, coolant circulation velocity is increased throughout the engine block at high engine speeds, effectively eliminating water jacket cavitation.
Featured Cooling & Lubrication Hardware
Engineered high-volume billet oil pumps, cam support plates, remote oil filtration systems, and secondary engine casing protection supplied directly through Roxstar's authorized brand channels, including Feuling Parts, S&S Cycle, and GB Racing via Orient Express Racing. Direct SA import with nationwide door-to-door delivery.
Race Series High-Flow Billet Oil Pump (M8)
Engineered specifically for Milwaukee-Eight engines to cure the notorious factory wet-sumping issue, delivering consistent oil pressure and cooler crankcase temps under high loads.
- 7075 billet aluminium precision CNC construction
- +40% scavenge capacity eliminates wet sumping
- +20% oil pressure volume to top-end rocker arm shafts
- Lowers operating oil temperatures by 15°F–25°F
Billet High-Flow Oil Pump & Cam Plate (M8)
The premier oiling system for high-performance Harley M8 builds. Provides superior structural rigidity, eliminates cam flex, and ensures maximum oil scavenging volume.
- Precision CNC machined 6061 billet aluminium plate
- Dual-stage high-efficiency gerotor oil pump gears
- Blue anodized wear-resistant finish
- Independent scavenge ports for crankcase & cam chest
Remote Oil Filter Relocation System
Relocates the oil filter away from hot engine casings into clean ambient airflow, lowering overall oil sump temperatures and making routine maintenance effortless.
- Billet aluminium filter head with clean frame mount
- Stainless steel braided high-pressure oil lines
- Moves oil filter directly into clean ambient airflow
- Simplifies oil changes with zero mess on front engine cases
Vented Dipstick Positive Pressure Relief System
Vents trapped crankcase air pressure dynamically, reducing piston ring drag, improving ring seal efficiency, and completely eliminating oily air cleaner blow-by.
- Internal porous bronze & cotton breather element
- Releases positive crankcase blow-by air pressure
- Prevents oil misting out of air cleaner filters
- Billet screw-in replacement with dipstick scale

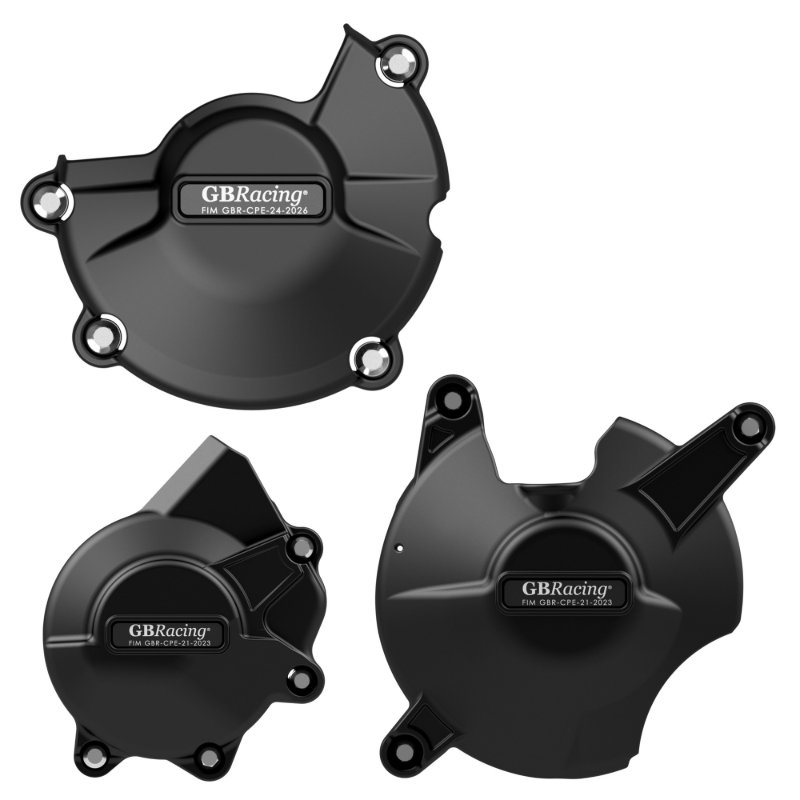

Secondary Engine Protection Cover Set
Championship-standard secondary engine casing protection supplied through Orient Express Racing. Absorbs heavy impact and abrasion without puncturing or causing oil spills.
- 60% long glass-fiber reinforced nylon composite
- FIM WorldSBK and MotoAmerica race certified
- Direct bolt-on secondary clutch, stator & pulse covers
- High thermal resistance & energy-absorbing impact design
TC3 Billet Oil Pump & Cam Plate (Twin Cam)
The ultimate oil pump and cam support plate upgrade for Harley Twin Cams, featuring three dedicated scavenging gerotors to keep the bottom end completely dry and free-revving.
- Three separate scavenge stages for Twin Cam engines
- Reduces crankcase drag and parasitic power loss
- Adjustable oil pressure relief valve
- Fits 1999–2017 Harley Twin Cam 88, 96, 103 & 110
Choosing cooling and oiling parts by bike type
Engine architecture dictates whether thermal management focuses on high-velocity liquid heat exchangers or high-volume dry-sump oil scavenging. Superbikes demand compact aerodynamics, V-twins demand massive oil flow, and adventure tourers demand off-road stone protection.
Superbike Racing Radiators
High-revving 1000cc superbikes generate immense thermal energy at 13,000+ RPM. Curved dual-pass aluminium racing radiators, auxiliary lower oil coolers, and 2.0 bar high-pressure caps prevent water temperature from spiking above 90°C, stopping ECU thermal protection programmes from trimming horsepower. Review superbike cooling on our superbike performance parts hub.
V-Twin Oil Pumps & Coolers
Big-inch American V-twins rely heavily on motor oil for both lubrication and direct cylinder head cooling. High-volume dual-scavenge billet oil pumps eliminate crankcase sumping on Milwaukee-Eight and Twin Cam engines, while multi-row thermostatic oil coolers prevent oil breakdown during hot urban stop-and-go riding. Explore V-twin oiling systems on our V-twin performance parts hub.
Adventure Heavy-Duty Cooling
Crawling up technical rocky passes at low speeds limits oncoming ram-air, causing adventure twins to overheat rapidly. Upgraded high-capacity aluminium radiators, auxiliary manual-override electric fan kits, and rugged CNC radiator braces prevent boil-overs and protect vulnerable cores from roost impacts. Review dual-sport systems on our adventure performance parts hub.
Which brands Roxstar supplies for cooling and lubrication
Roxstar supplies engineered cooling and lubrication hardware manufactured to rigorous international motorsport tolerances. Every billet oil pump, radiator core, thermostatic valve, and braided hose assembly is verified for dimensional accuracy, metallurgy, and exact model-year engine fitment.
Direct Import & Distributor Supply
Roxstar Performance is currently finalizing direct distributor supply partnerships with premier international performance cooling and oiling manufacturers (TODO_CONFIRM: confirm authorized brand portfolio for radiators, oil pumps, and oil coolers). In the interim, high-flow billet oil pumps, all-aluminium racing radiators, thermostatic oil coolers, and high-pressure caps are procured via our verified international supply pipeline with guaranteed authenticity and model-year precision.
How cooling and lubrication upgrades pair with other modifications
Thermal management provides the structural safeguard that enables aggressive engine and transmission modifications to function reliably. Synchronizing cooling components with powertrain upgrades ensures lasting performance under extreme loads.
Engine Camshaft & Big-Bore Loads
High-lift camshafts and high-compression pistons on our engine performance hub dramatically elevate thermal energy and valvetrain friction. Upgrading to a high-volume oil pump ensures continuous pressurized oil feeds to rocker shafts and crank journals under high-RPM punishment.
Air-Fuel & Thermal Protection
Excess cylinder head temperatures force engine management systems to richen air-fuel mixtures to avert detonation. Performance cooling systems maintain uniform block temperatures, allowing autotuners on our intake and fuel management hub to run clean, efficient fuel maps.
Clutch Friction Heat Dissipation
Wet multi-plate clutches on our clutch and drivetrain hub shed intense friction heat directly into the circulating engine oil. Auxiliary oil coolers prevent lubricant breakdown, stopping clutch lever fade and plate warpage during repeated race launches.
Supply, delivery and recommended fitment
Roxstar supplies and distributes performance parts and handles all customer service and customer handling itself. Goods are delivered by the fastest available method. Delivery takes overnight at most from the time goods arrive in South Africa. Installation is NOT performed by Roxstar: a recommended service associate carries it out, selected by bike, usage, and condition.
Direct Supply & Rapid Delivery
Roxstar manages complete procurement and distribution of imported billet oil pumps, aluminium radiators, oil coolers, and high-pressure caps. Delivery takes overnight at most from the time goods arrive in South Africa, dispatched via express courier directly to your door or designated workshop. Learn more about our performance parts supply and delivery service.
Recommended Fitment Partners
Installation is not performed by Roxstar. To ensure oil pump pinion shaft runout is verified with a dial indicator, AN-hose fittings are torqued without binding, and radiators are vacuum-filled without air locks, Roxstar refers clients to independent, vetted specialists. Review our network of recommended fitment partners.
Compatibility Verification
Cooling and lubrication upgrades require precise camchest depth measurements, radiator fairing clearance confirmation, and correct AN hose thread sizes. Our technical desk conducts rigorous pre-order checks against your motorcycle's exact model year and engine displacement. Submit your specifications to our parts compatibility check before ordering.
Frequently Asked Questions about Motorcycle Cooling & Lubrication
Clear, evidence-backed answers regarding motorcycle exhaust fitment and supply.
What causes motorcycle engine oil sumping and how does a high-flow oil pump resolve it?
Why do all-aluminium oversized radiators drop motorcycle engine temperatures more effectively than OEM units?
What is the advantage of a thermostatic oil cooler over a non-thermostatic bypass system?
How does increasing radiator cap pressure from 1.1 bar to 1.8 or 2.0 bar protect the engine?
Does Roxstar Performance install oil pumps, bleed cooling systems, or mount auxiliary radiators?
Request Model-Specific Motorcycle Exhaust Advice
Speak directly with a specialist to verify make, model, year, and performance compatibility for your motorcycle.
